Lithium Batteries 48v 300ah 51.2v Lifepo4 Powerwall Lithium Solar Inverter Battery
ProductIntroduction

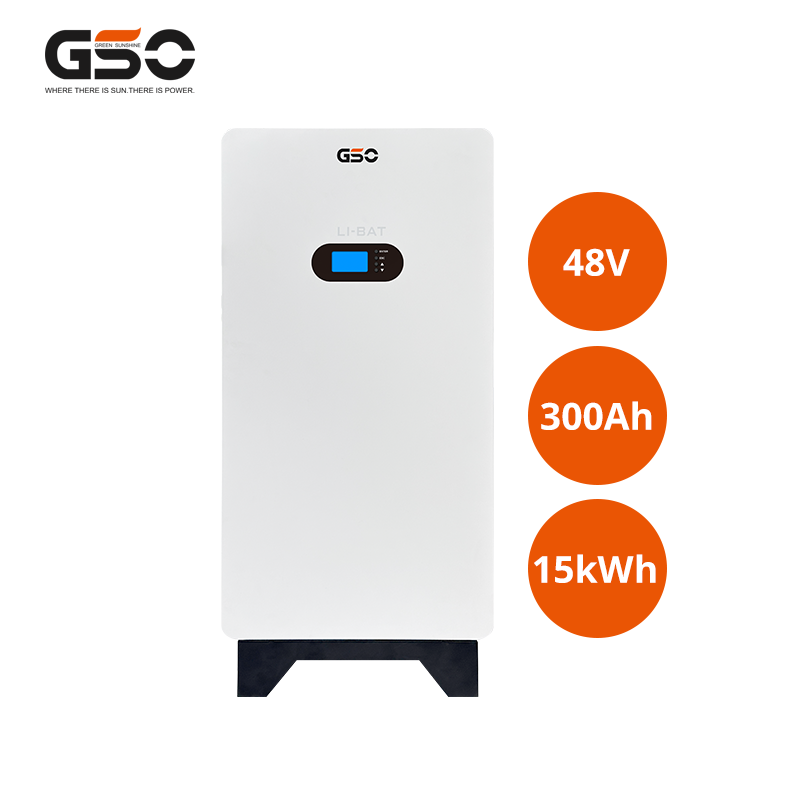

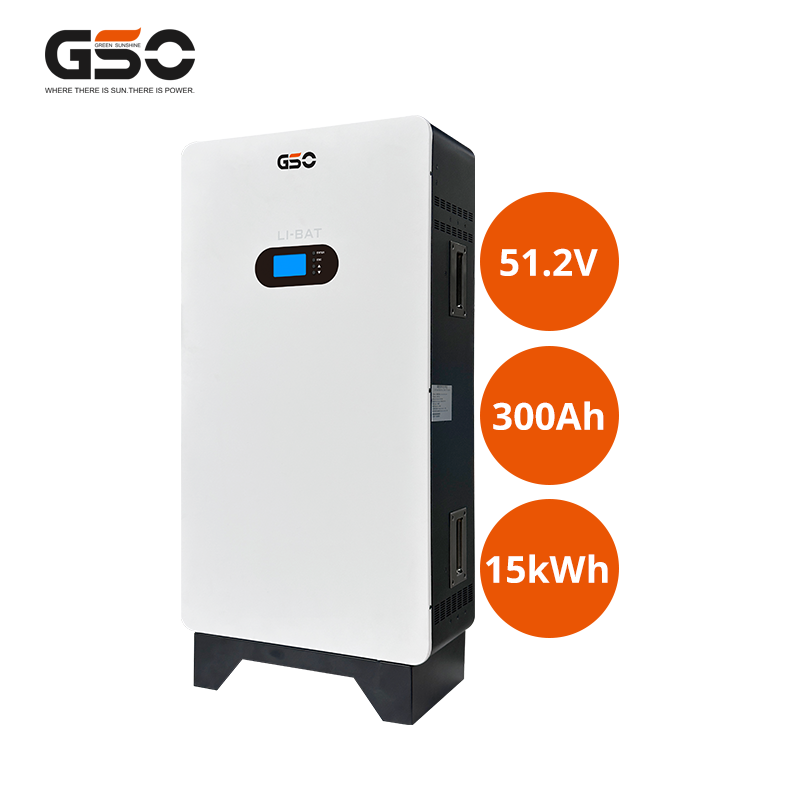

48V/51.2V 300AH Lifepo4 Standing Battery
The product utilizes Top grade A cell, designed to last over 10 years;
Easy maintenance and operation;
Functions:1.Over-temperature alarm protection
2.Over-charge and over-discharge protection
3.Short-circuit protection
4.Seamless connection with UPS, photovoltaic power generation and other mainequipment
Model | GBP48-300H | GBP51.2-300H |
Nominal volt (V) | 48 | 51.2 |
Nominal capacity(Ah) | 300 | 300 |
Working volt range | 42~54.75 | 44.8~58.4 |
Recommended charging volt (V) | 51.75 | 55.2 |
Recommended discharging cut-off volt (V) | 45 | 48 |
Standard charging current(A) | 100 | |
Maximum continuous charging current(A) | 150 | |
Standard discharging current (A) | 100 | |
Maximum discharging current(A) | 150 | |
proper temperature(°C) | -30~60(Recommended10~35) | |
Allowable humidity range (%RH) | <85 | |
Storage temperature(℃) | -20~65 (Recommended10~35) | |
Protection level | IP20 | |
Cooling method | Natural cooling | |
Cabinet size(D*W*H)mm | 246*480*895 | |
Maximum size(D*W*H)mm | 286*480*995 | |
Net weight | 146（Kg） | 149（Kg） |
Wide Compatibility
Our modules can Cooperate with most inverters on the market.

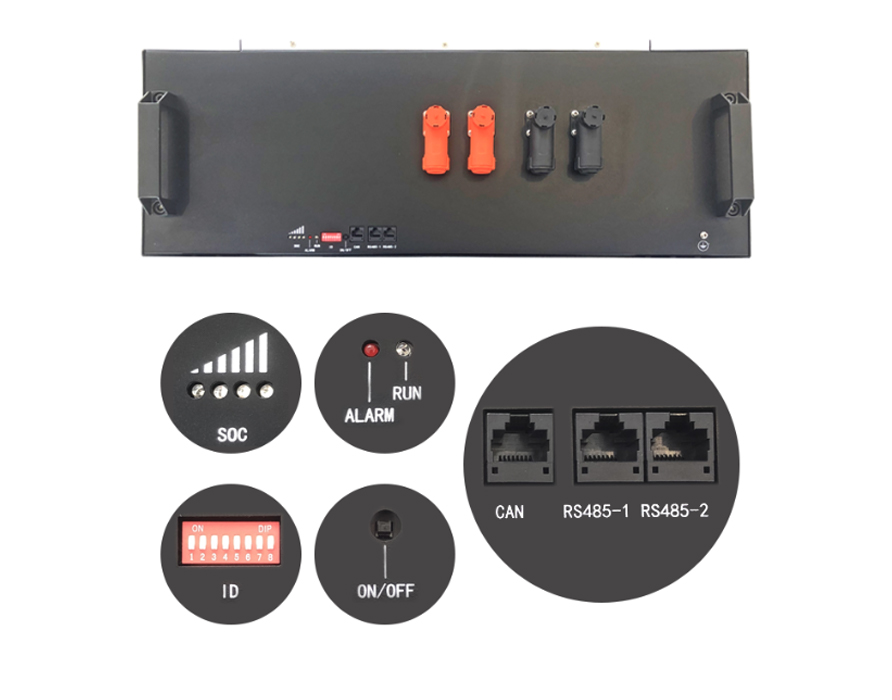

Battery Function
1.One-key switch machine, front wiring.
2.At a glance, you can see the state of the battery
3.Communication interface with two RS485 and one CAN,can be customizable.

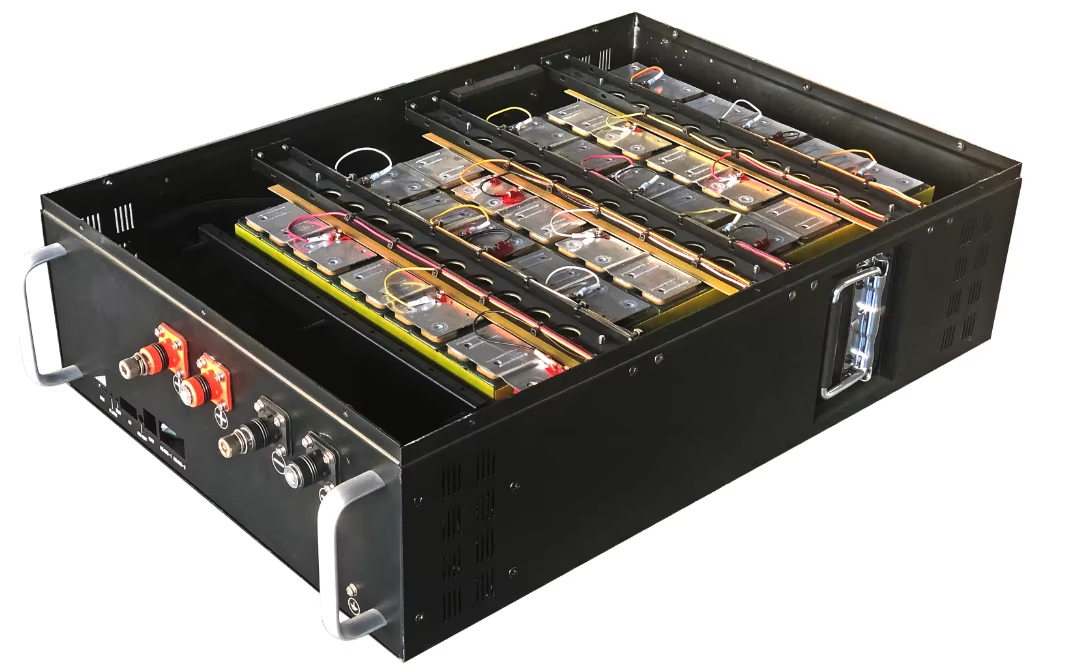

Inside the battery
1.Top garde A cell
2.Standard cycle life is more than 6000 times
3.Metals, green and environmentally friendly
4.Designed to last over 10 years

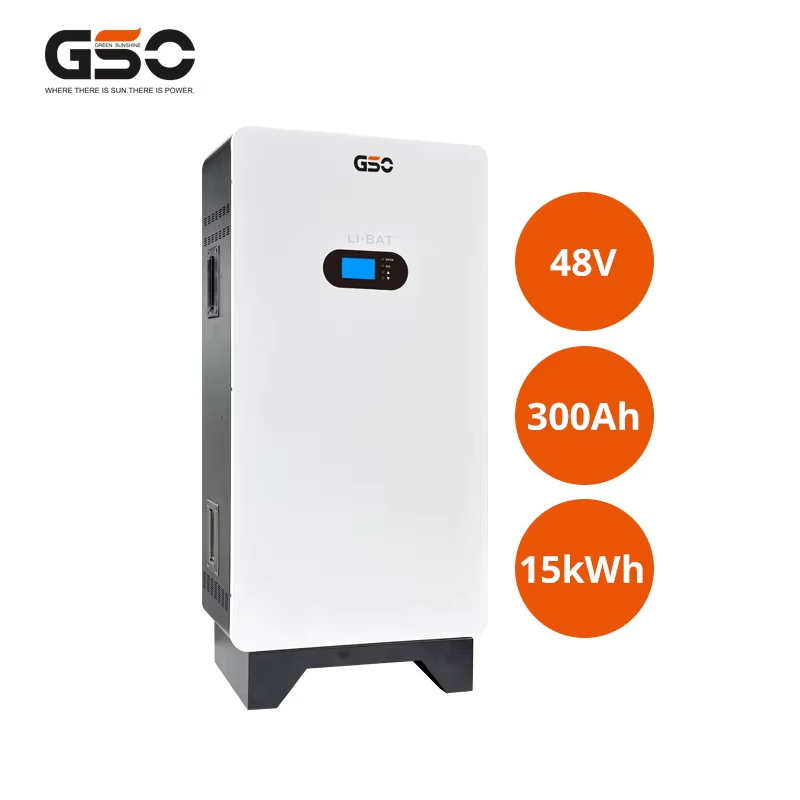

Battery details
1.Dustproof and waterproof cover on top of the battery
2.Standard configuration with LCD display, real time knowing battery status
3.Lockable, silent casters on the bottom of the battery.
